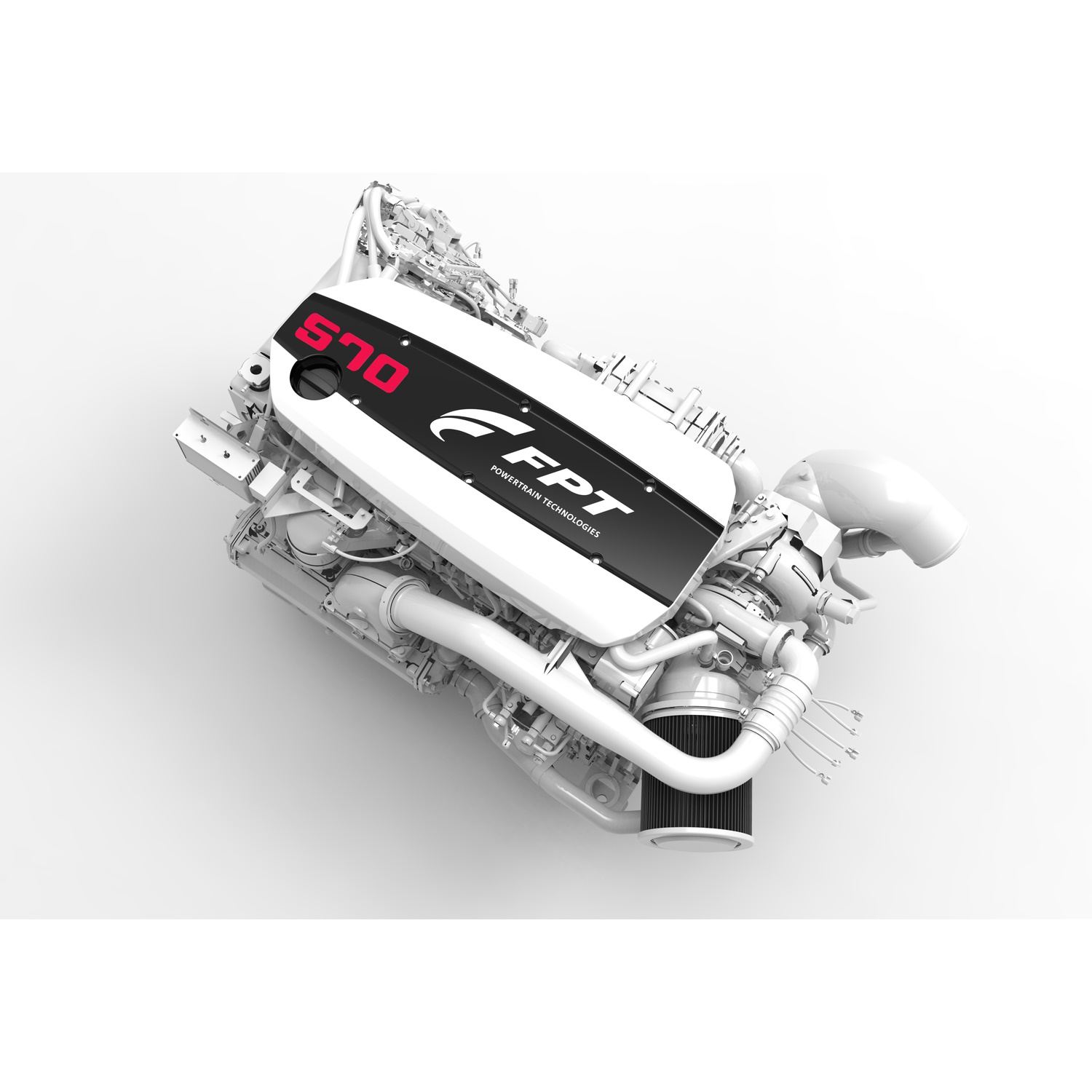

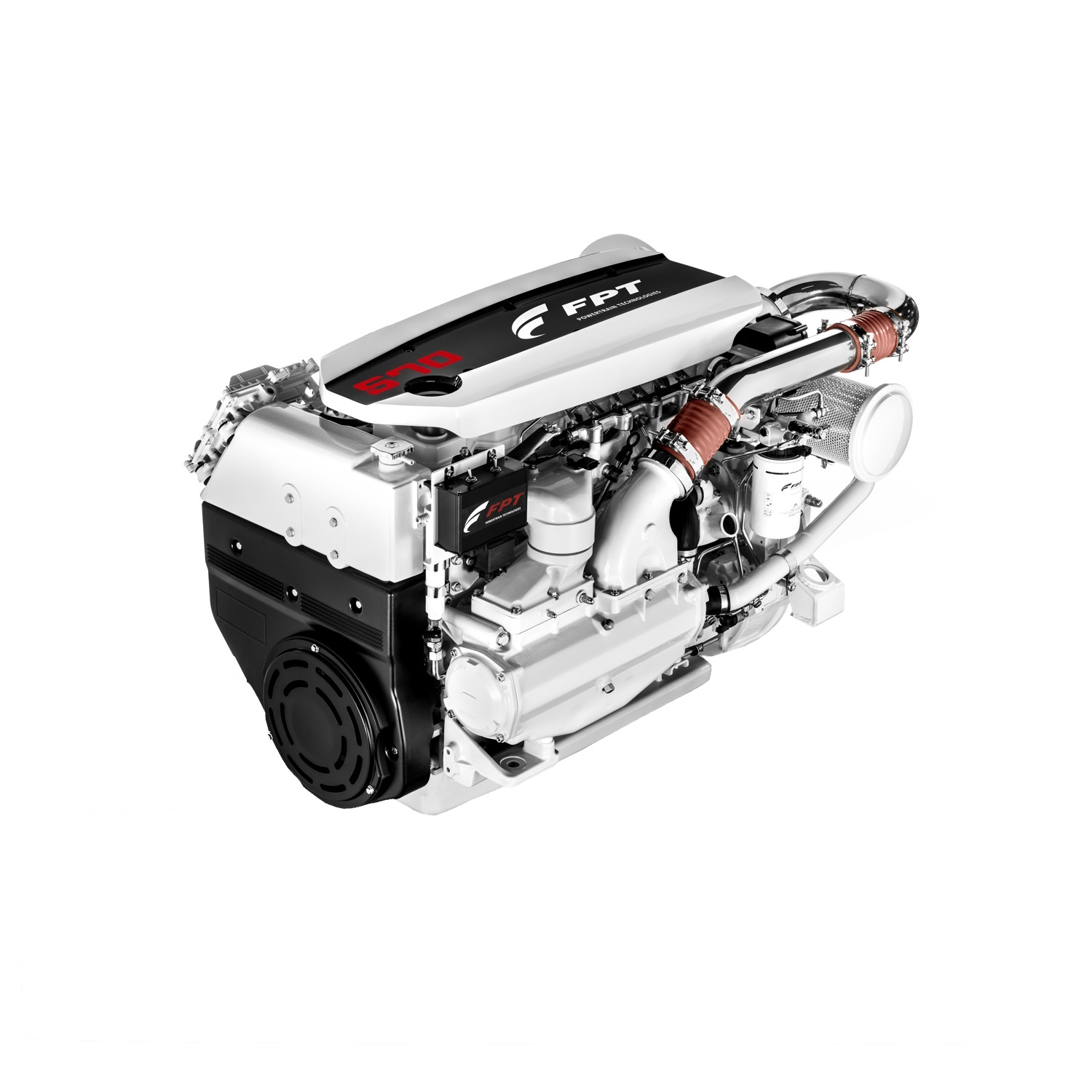

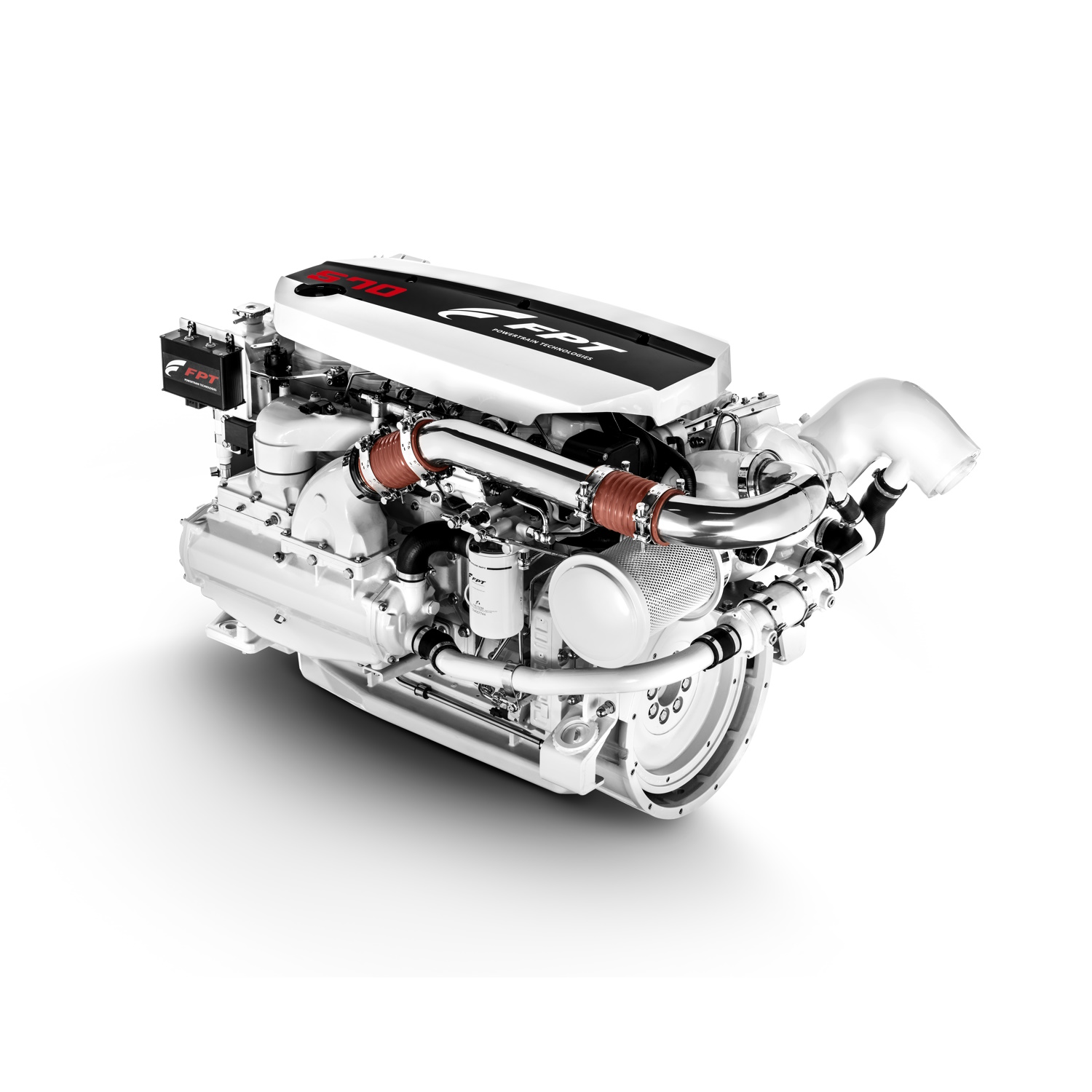

NEF 67 – N67 570 EVO

570 EVO Rated at 570 Mhp @ 3000

[SPEC SHEET]

SKU: N67ENTMW57 Categories: , , Tags: , ,

Description

• Cylinder Arrangement: Inline 6 Cylinder
• Air Feeding: TCA
• Displacement: 6.7 L
• Injection System: ECR
• Supercharged

Available in the following power rating configurations:

High Performance Crafts – Maximum usage 300 hours per year.

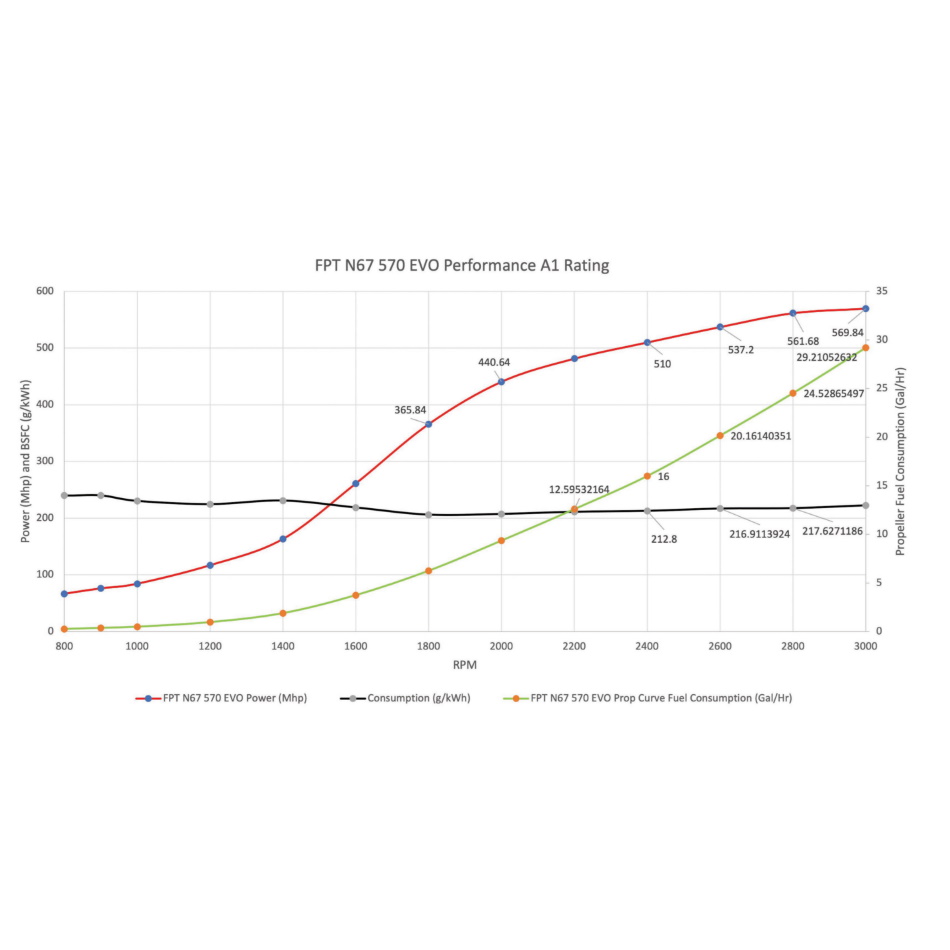

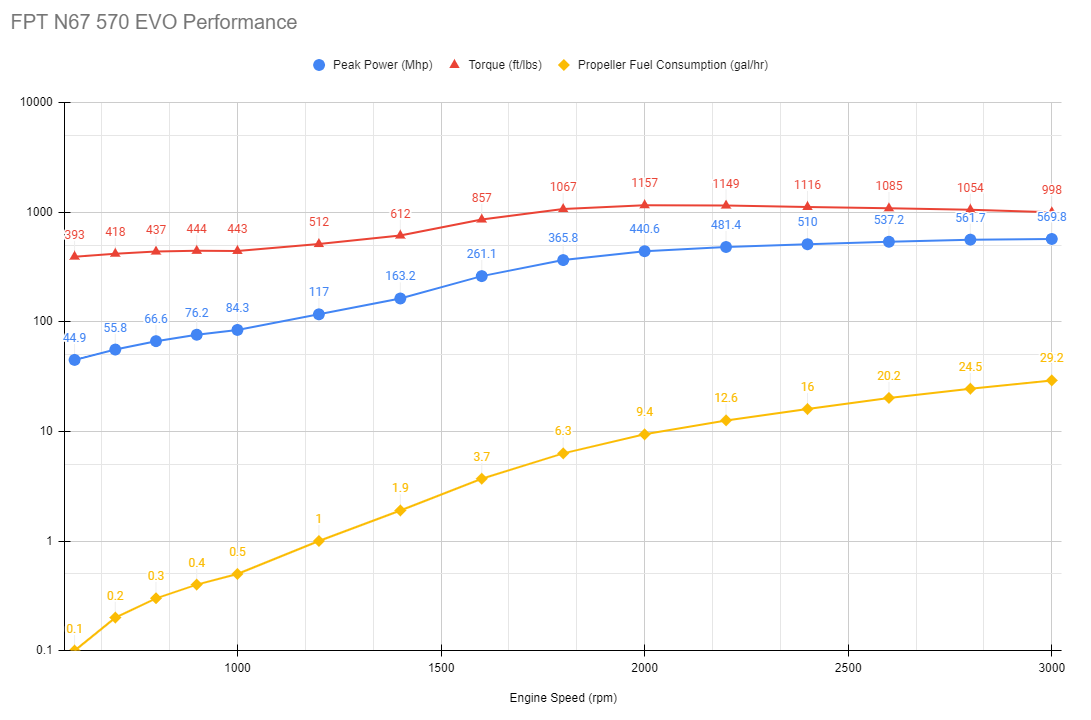

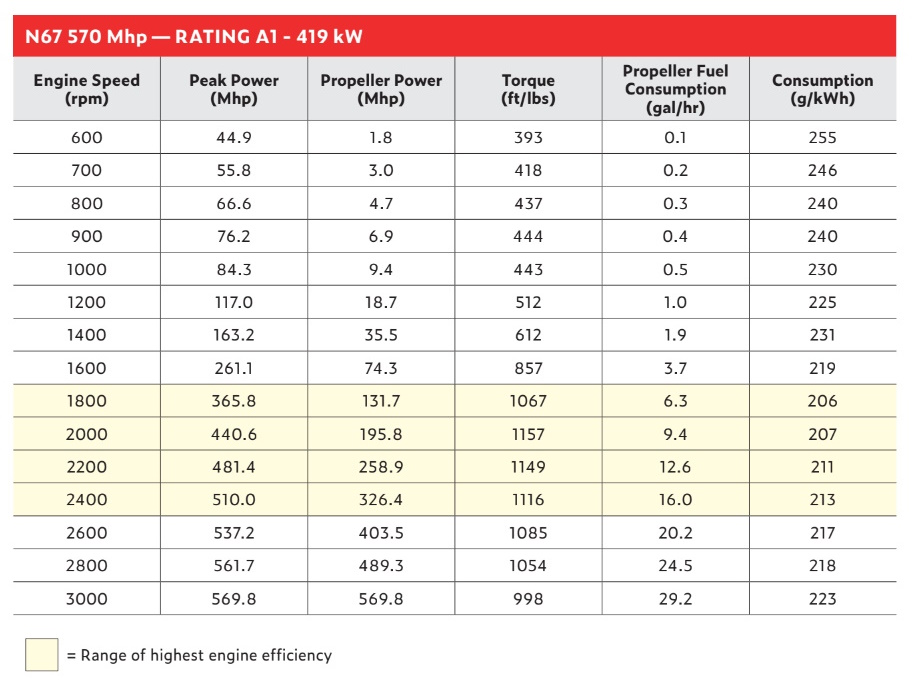

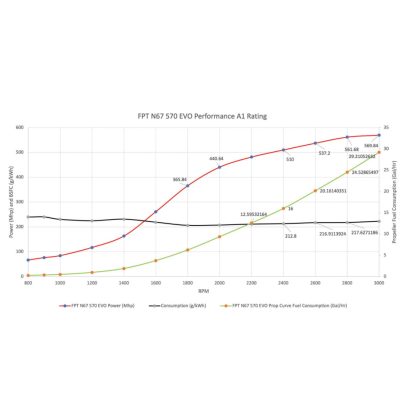

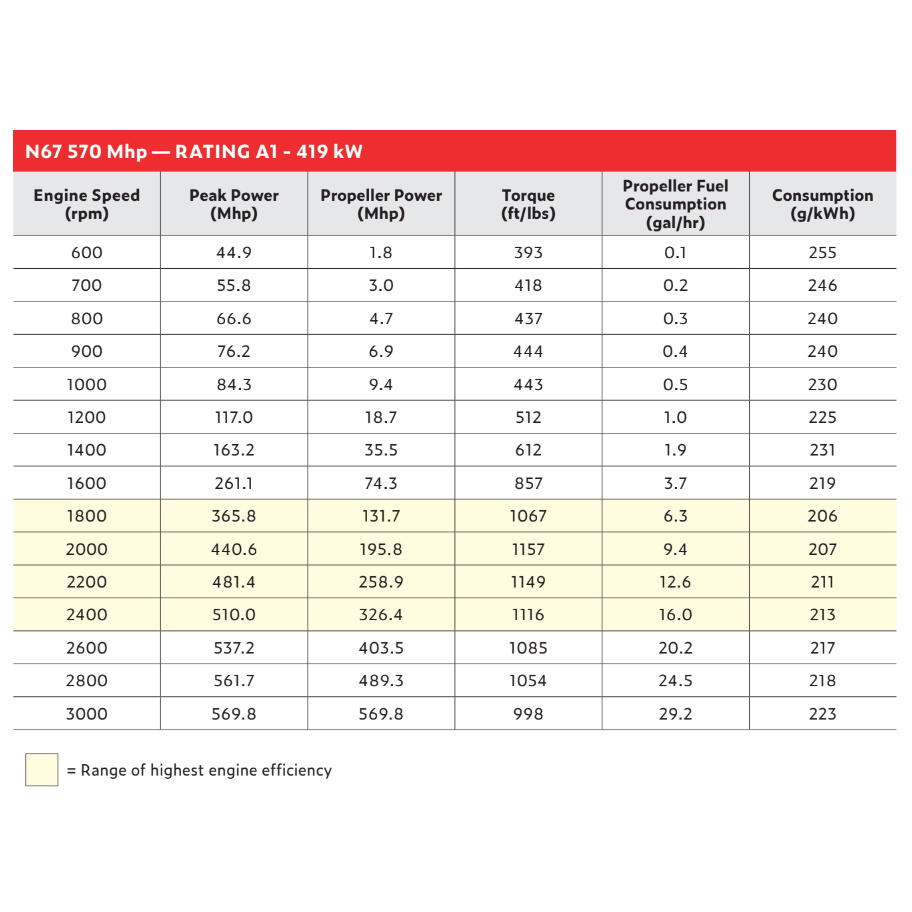

• A1 : 570 HP @ 3000 rpm [SPEC SHEET]

Pleasure Commercial Vessels – Maximum usage 1000 hours per year.

• A2/B1 : 530 HP @ 3000 rpm [SPEC SHEET]

Light Duty – Maximum usage 1500 hours per year.

• B : 485 HP @ 3000 rpm [SPEC SHEET]

FPT Engine Warranty







Additional information

Weight 1610 lbs
Dimensions 42.8 × 33.3 × 32.4 in
Compression Ratio

15.9 : 1

Valves per Cylinder

4

Rotation

CCW

Fuel System

Electronic Common Rail

Cylinder Head Material

CGI

Over Head Camshaft

Heat Treated Steel

Piston

Aluminum Double Lip Re-entrant

Moment of Inertia

.750 kg/m2

Temperature Regulation

72-80C

Cold Start Aid

Yes

Emissions Level

EPA Tier 3

Flywheel SAE1

11"

Flywheel Housing

Aluminum, SAE 3

Oil Sump

Aluminum 10 Degree Static

Voltage

12V, 24V

Alternator

70A, 90A

Starter

3 kW

Dry Weight

1610 lbs

Wet Weight

1670 lbs
