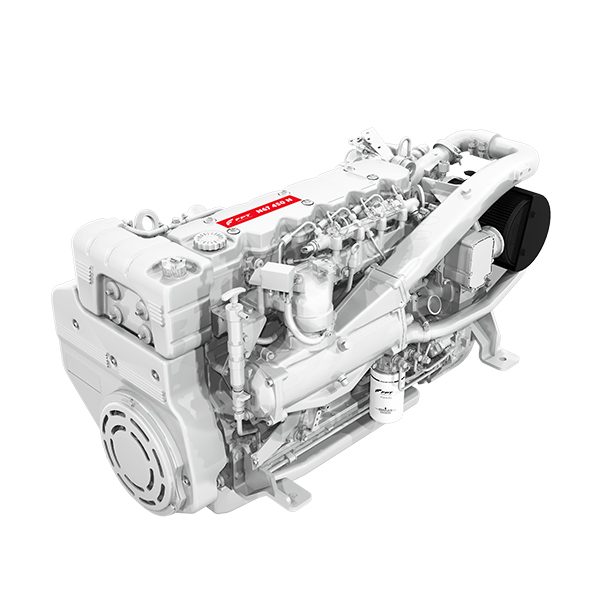

NEF 67 – N67 450 N

450 HP @ 3000 rpm

976 ft/lbs @ 1750 rpm

[SPEC SHEET]



SKU: N67ENTM45 Categories: , , Tags: , ,

Description

• Cylinder Arrangement: Inline 6 Cylinder
• Air Feeding: TCA
• Displacement: 6.7 L
• Injection System: ECR

Available in the following power rating configurations:

High Performance Crafts – Maximum usage 300 hours per year.

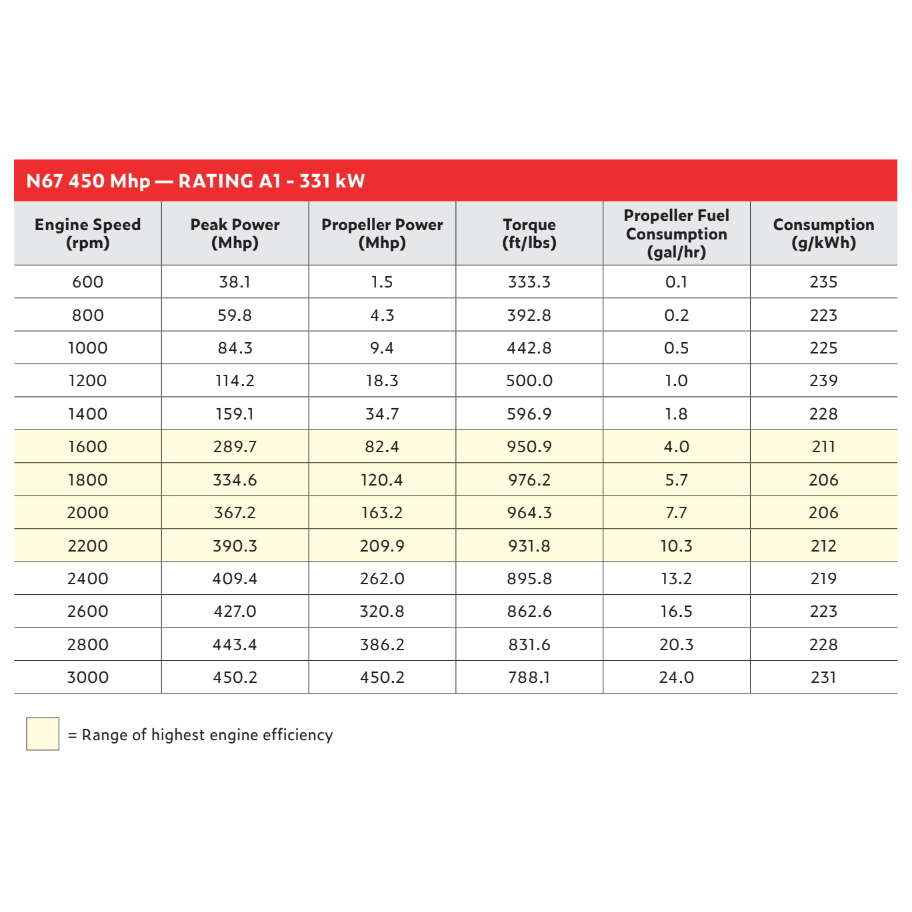

A1 : 450 HP @ 3000 rpm [SPEC SHEET]

Pleasure Commercial Vessels – Maximum usage 1000 hours per year.

A2 : 420 HP @ 3000 rpm [SPEC SHEET]

Light Duty – Maximum usage 1500 hours per year.

B : 370 HP @ 3000 rpm

Medium Duty – Maximum usage 3000 hours per year.

C : 350 HP @ 3000 rpm

FPT Engine Warranty

Additional information

Weight 1320 lbs
Dimensions 42.8 × 31 × 31 in
Brand

FPT

Type

Diesel 4 Stroke

Configuration

Inline 6 Cylinder

Air Handling

Turbocharged Air Cooled

Bore X stroke

104 x 132 mm

Displacement

6.7 L

Compression Ratio

16.5 : 1

Valves per Cylinder

4

Rotation

CCW

Fuel System

Electronic Common Rail

Cylinder Head Material

Cast Iron

Over Head Camshaft

Heat Treated Steel

Piston

Aluminum Double Lip Re-entrant

Moment of Inertia

.750 kg/m2

Temperature Regulation

72-80C

Cold Start Aid

Yes

Cooling System

HXC

Emissions Level

EPA Tier 3

Flywheel SAE1

11"

Flywheel Housing

Aluminum, SAE 3

Oil Sump

Aluminum 10 Degree Static

Voltage

12V, 24V

Alternator

70A, 90A

Starter

3 kW

Dry Weight

1320 lbs

Wet Weight

1365 lbs
