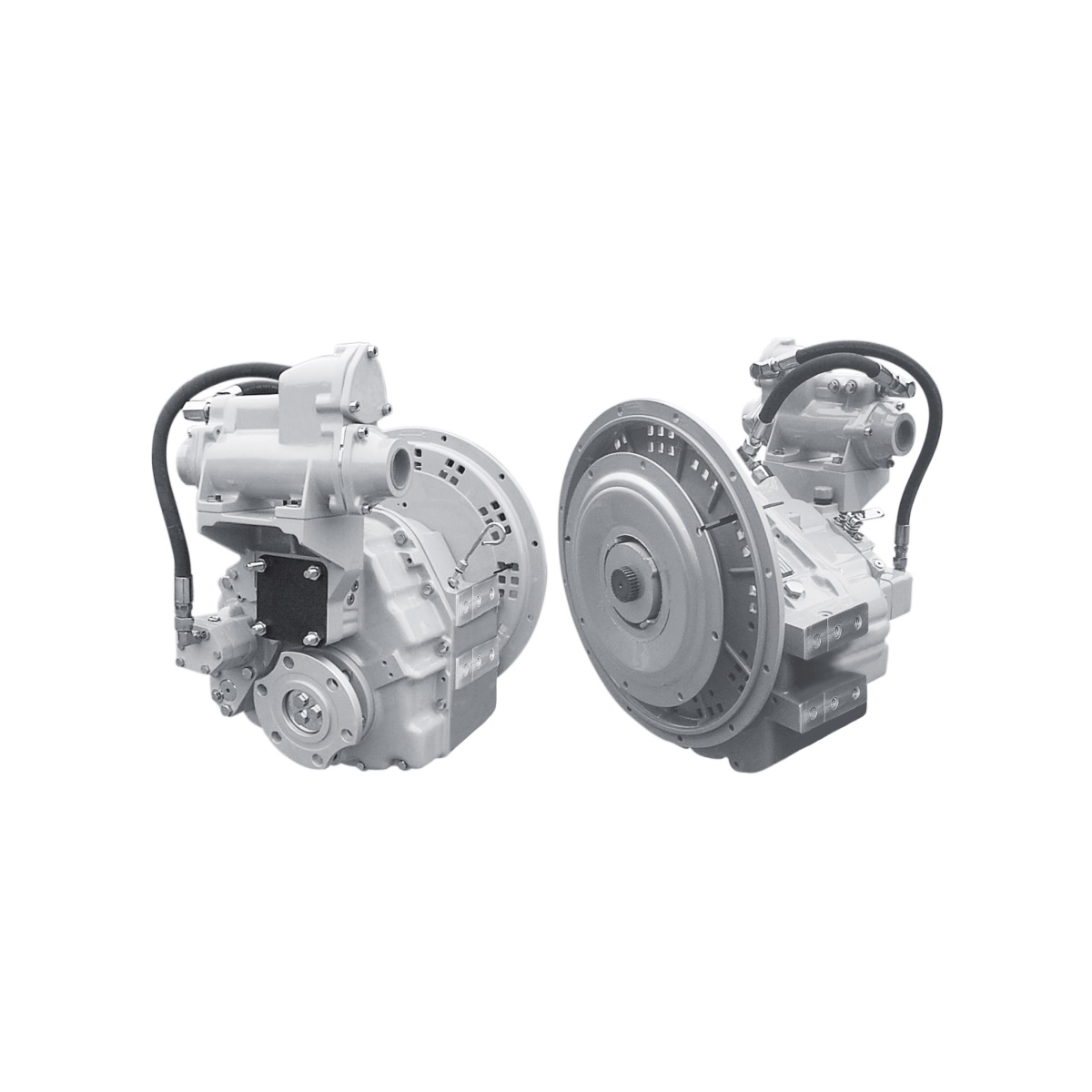

Description
Standard Equipment
- Vertical offset, aluminum housing
- 7° down angle on output shaft
- Mechanical control valve
- Oil strainer
Options
- SAE J617 housing no. 1
- SAE J617 housing no. 2
- SAE J617 housing no. 3
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Flexible coupling for 11.5” flywheel (SAE J620 size 290)
- Input flange for freestanding installation
- Electric control valve (12VDC or 24 VDC)
- Mechanical trolling valve
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO:
- SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
- SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt, max. 197 Nm)
- SAE J744 size 101-2/4, 25-4 (SAE “B-B”, 2/4-bolt, max. 337 Nm)
| Reduction Ratios :1 |
Pleasure Craft @ 2500 RPM |
Light Duty @ 2300 RPM |
Intermediate Duty @ 2100 RPM |
Medium Duty @ 1800 RPM |
Continuous Duty @ 1800 RPM |
|---|---|---|---|---|---|
| 1.08, 1.26, 1.47, 1.72, 2.04 |
570 HP | 504 HP | 374 HP | 304 HP | 290 HP |
| 2.43 | 536 HP | 471 HP | 341 HP | 279 HP | 267 HP |
