Description
FEM and FEC Series Nipples (hydraulic) up to 4568 psi and connect with FEM Series Couplers. All FEM and FEC Series parts meet or exceed design and performance requirements of Hydraulic Tool Manufacturer’s Association (HTMA – ISO 16028) standards. FEC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion.

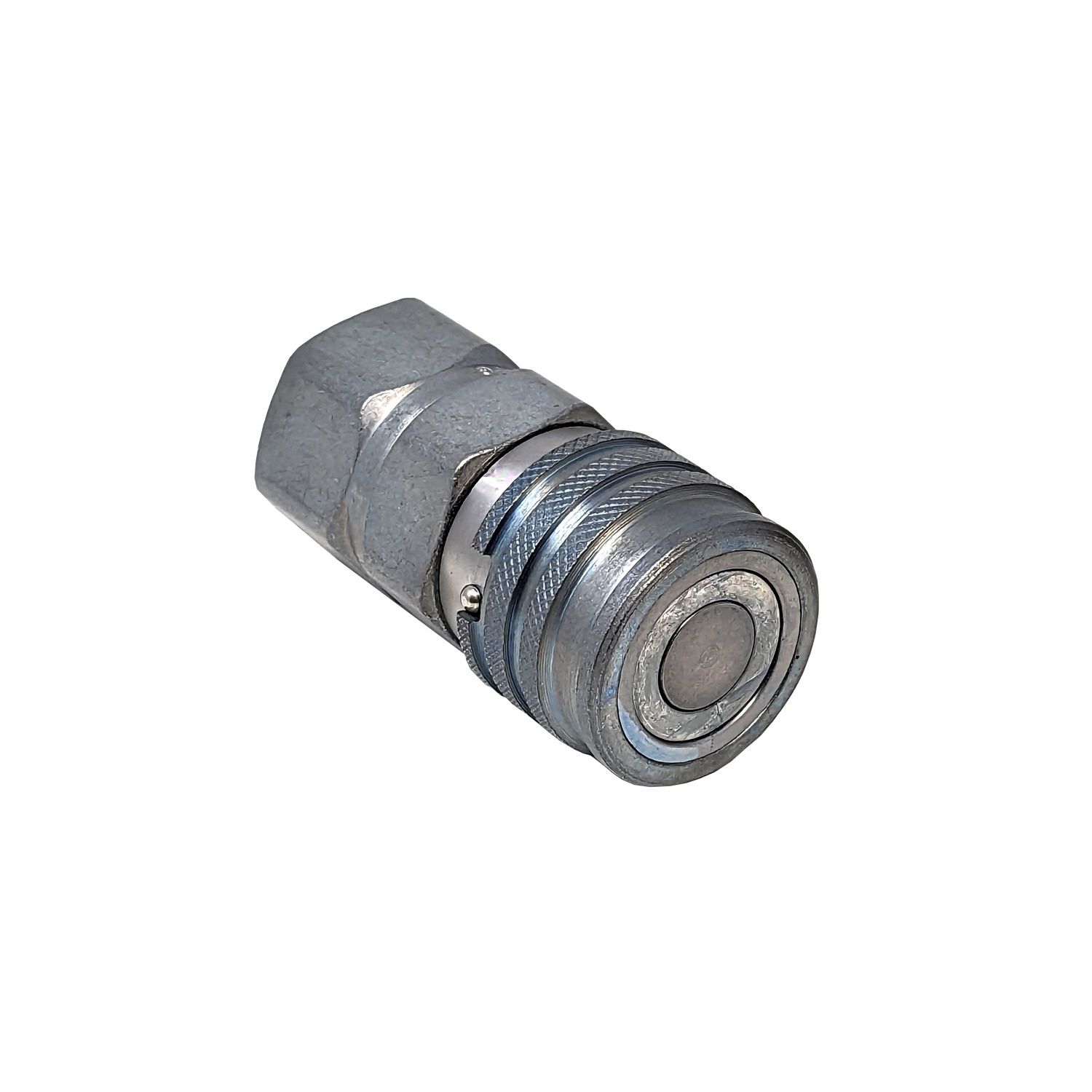

Parker’s FEM Series quick connect fittings are double shut off, non-spill, flat face quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA – ISO 16028. FEM quick couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.
Technical Characteristics:
• FEM Sizes: 1/4” – 1”
• FEC (Connect Under Pressure) Sizes: 1/2″, 5/8″, 3/4″
• Materials: Steel
• Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
• Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
