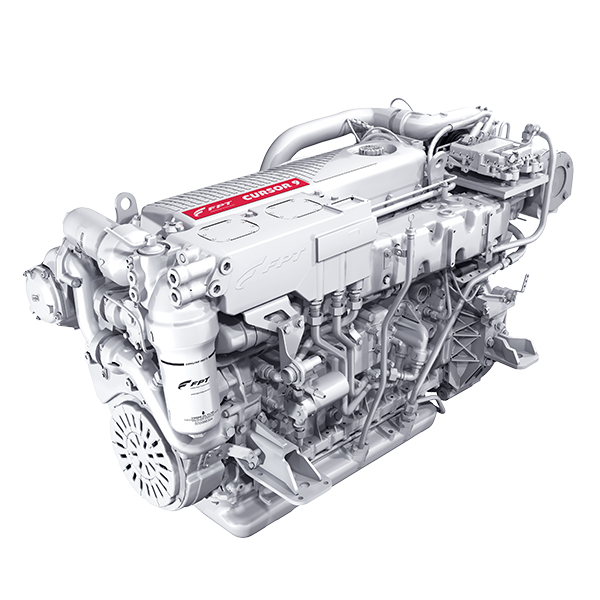

CURSOR 9 – C90 650 EVO

650 EVO Rated at 650 Mhp @ 2530

SKU: C90ENTMW65 Categories: , , Tags: , ,

Description

• Cylinder Arrangement: Inline 6 Cylinder
• Air Feeding: TCA
• Displacement: 8.7 L
• Injection System: ECR
• Supercharged

Available in the following power rating configurations:

High Performance Crafts – Maximum usage 300 hours per year.

• A1 : 650 HP @ 2530 rpm [SPEC SHEET]

Pleasure Commercial Vessels – Maximum usage 1000 hours per year.

A2/B1 : 625 HP @ 2530 rpm [SPEC SHEET]

FPT Engine Warranty

Additional information

Weight 2072 lbs
Dimensions 50.7 × 32.4 × 37.8 in
Brand

FPT

Type

Diesel 4 Stroke

Configuration

Inline 6 Cylinder

Air Handling

Turbocharged Air Cooled

Bore X stroke

117 x 135 mm

Displacement

8.7 L

Compression Ratio

14.5 : 1

Valves per Cylinder

4

Rotation

CCW

Fuel System

Electronic Common Rail

Cylinder Head Material

Cast Iron

Over Head Camshaft

Heat Treated Steel

Piston

Aluminum Double Lip Re-entrant

Moment of Inertia

1.880 kg/m2

Temperature Regulation

72-80C

Cold Start Aid

Yes

Emissions Level

EPA Tier 3

Flywheel SAE1

14"

Flywheel Housing

Aluminum

Oil Sump

Aluminum 10 Degree Static

Voltage

24V

Alternator

90A

Starter

5.5 kW

Dry Weight

2072 lbs

Wet Weight

2200 lbs
