• Cylinder Arrangement: Inline 6 Cylinder
• Air Feeding: TCA
• Displacement: 15.9 L
• Injection System: ECR
Available in the following power rating configurations:
Medium Duty – Maximum usage 3000 hours per year. 25% full throttle allowance.

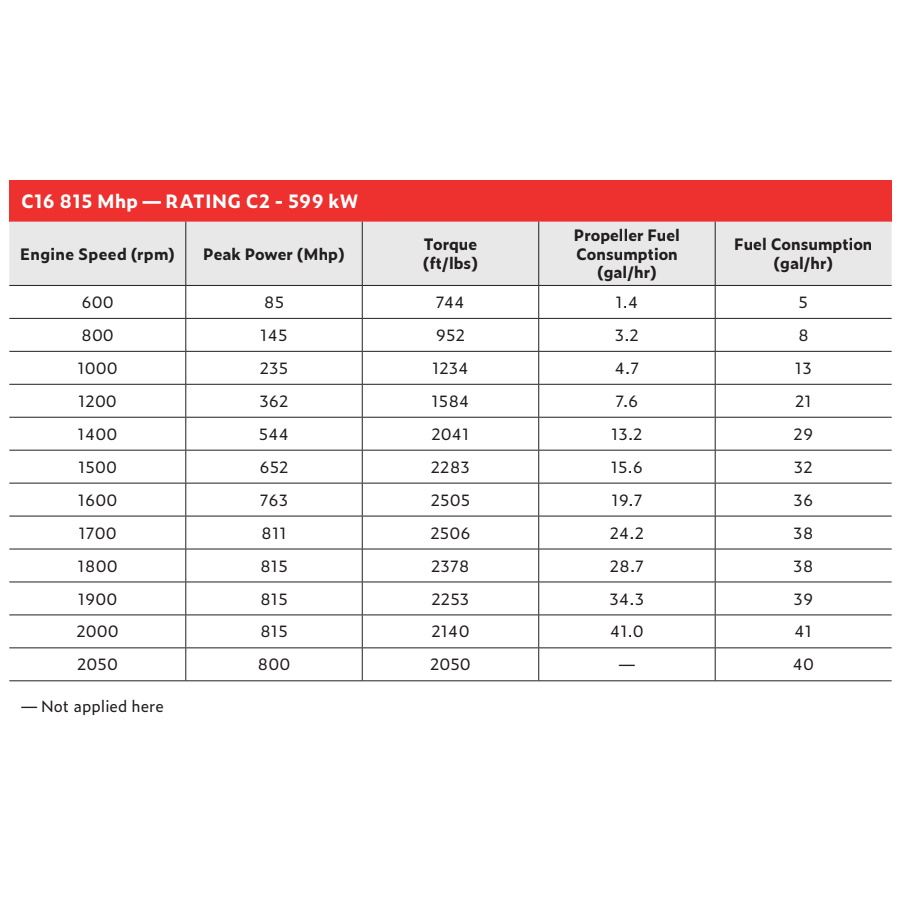

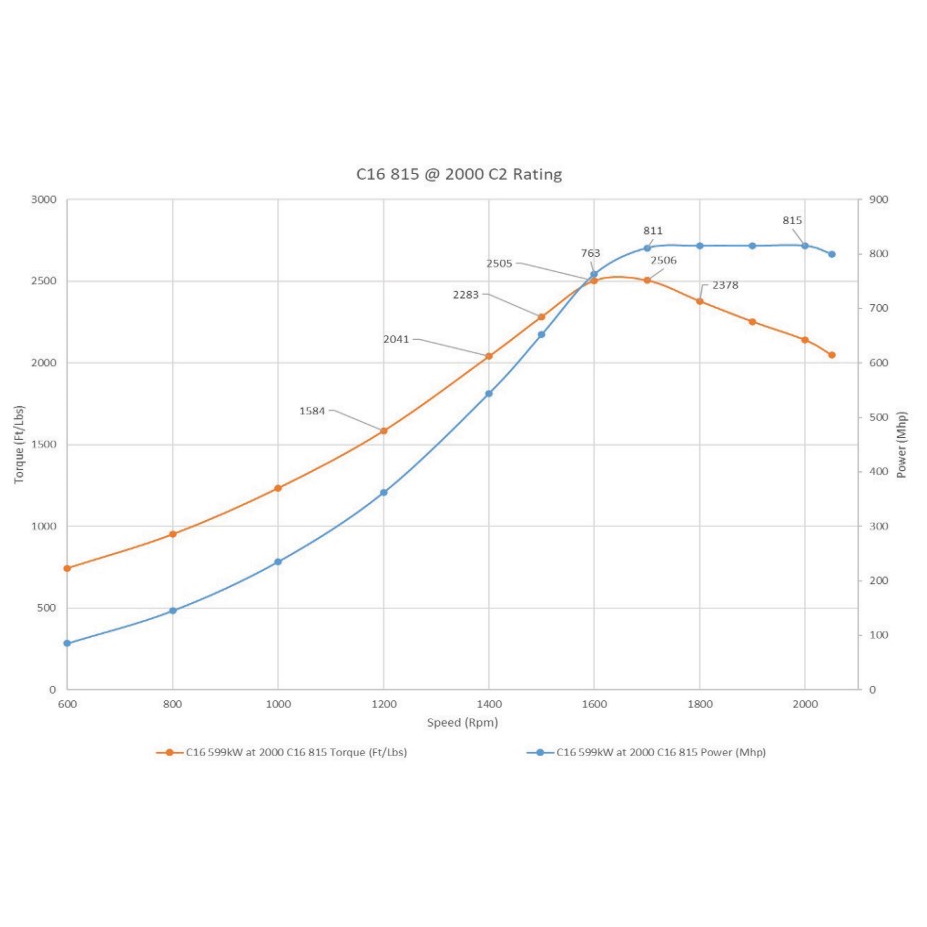

• C : 815 HP @ 2000 rpm [SPEC SHEET]
• C : 750 HP @ 2000 rpm
| Weight | 3725 lbs |
|---|---|
| Dimensions | 57.7 × 44.7 × 45.7 in |
| Brand | FPT |
| Type | Diesel 4 Stroke |
| Configuration | Inline 6 Cylinder |
| Air Handling | Turbocharged Air Cooled |
| Bore X stroke | 141 x 170 mm |
| Displacement | 15.9 L |
| Compression Ratio | 15.5 : 1 |
| Valves per Cylinder | 4 |
| Rotation | CCW |
| Fuel System | Electronic Common Rail |
| Cylinder Head Material | CGI |
| Over Head Camshaft | Heat Treated Steel |
| Piston | Steel Crown Dual Lip Re-entrant |
| Moment of Inertia | .4845 kg/m2 |
| Temperature Regulation | 72-80C |
| Cold Start Aid | Yes |
| Emissions Level | EPA Tier 3 |
| Flywheel SAE1 | 19" |
| Flywheel Housing | SAE 1 |
| Oil Sump | Aluminum 10 Degree Static |
| Voltage | 24V |
| Alternator | 90A/120A |
| Starter | 5.5 kW |
| Dry Weight | 3725 lbs |
| Wet Weight | 3968 lbs |
