Description

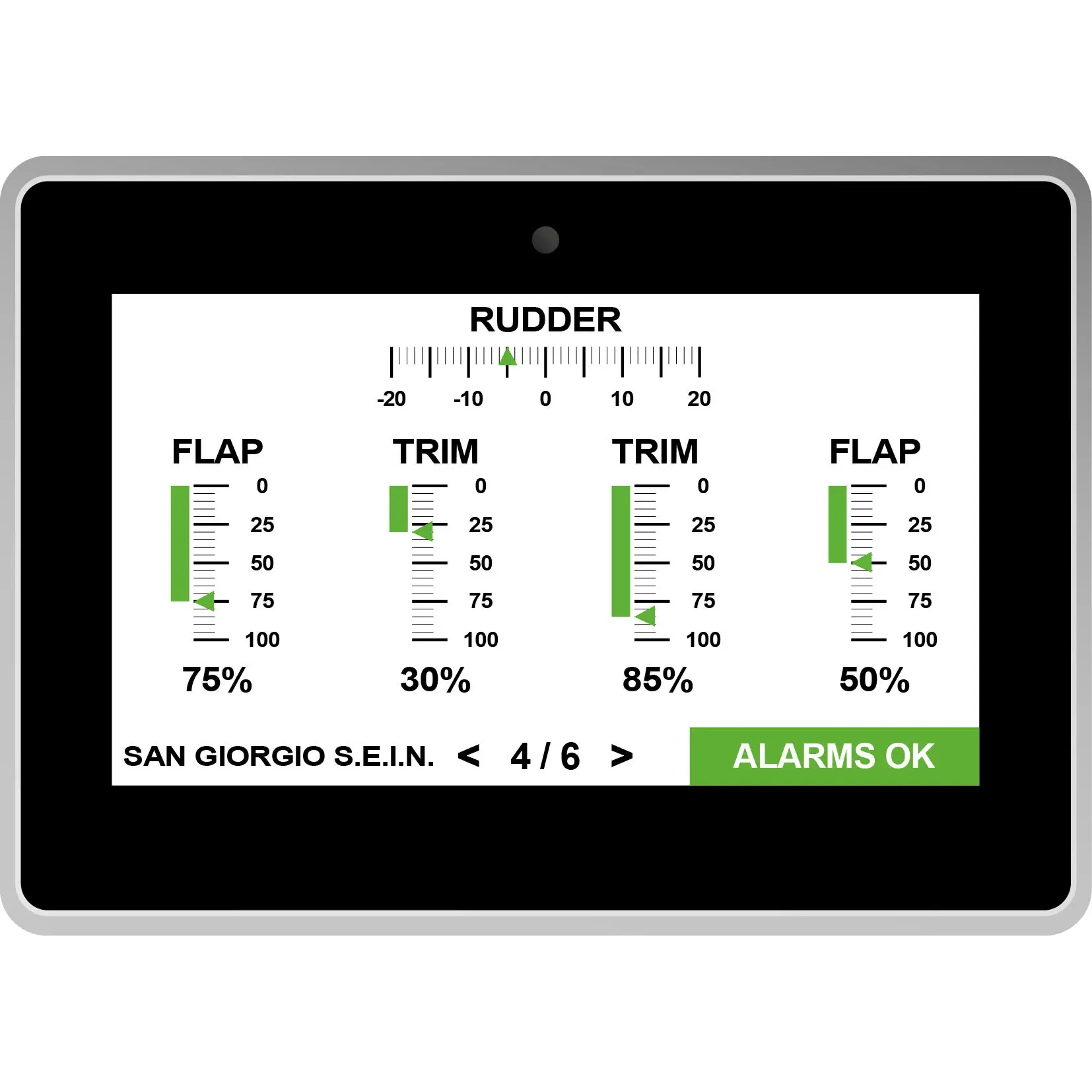

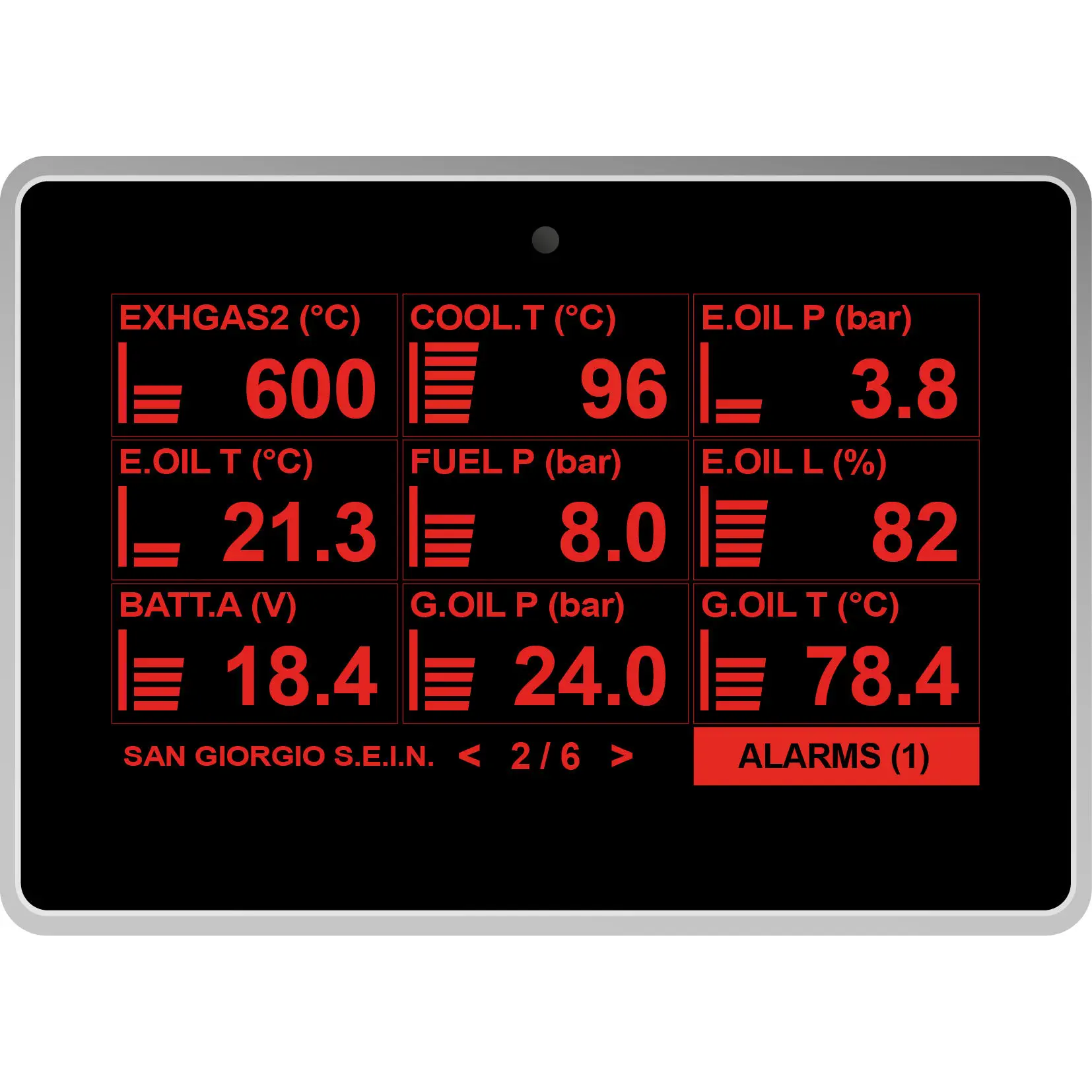

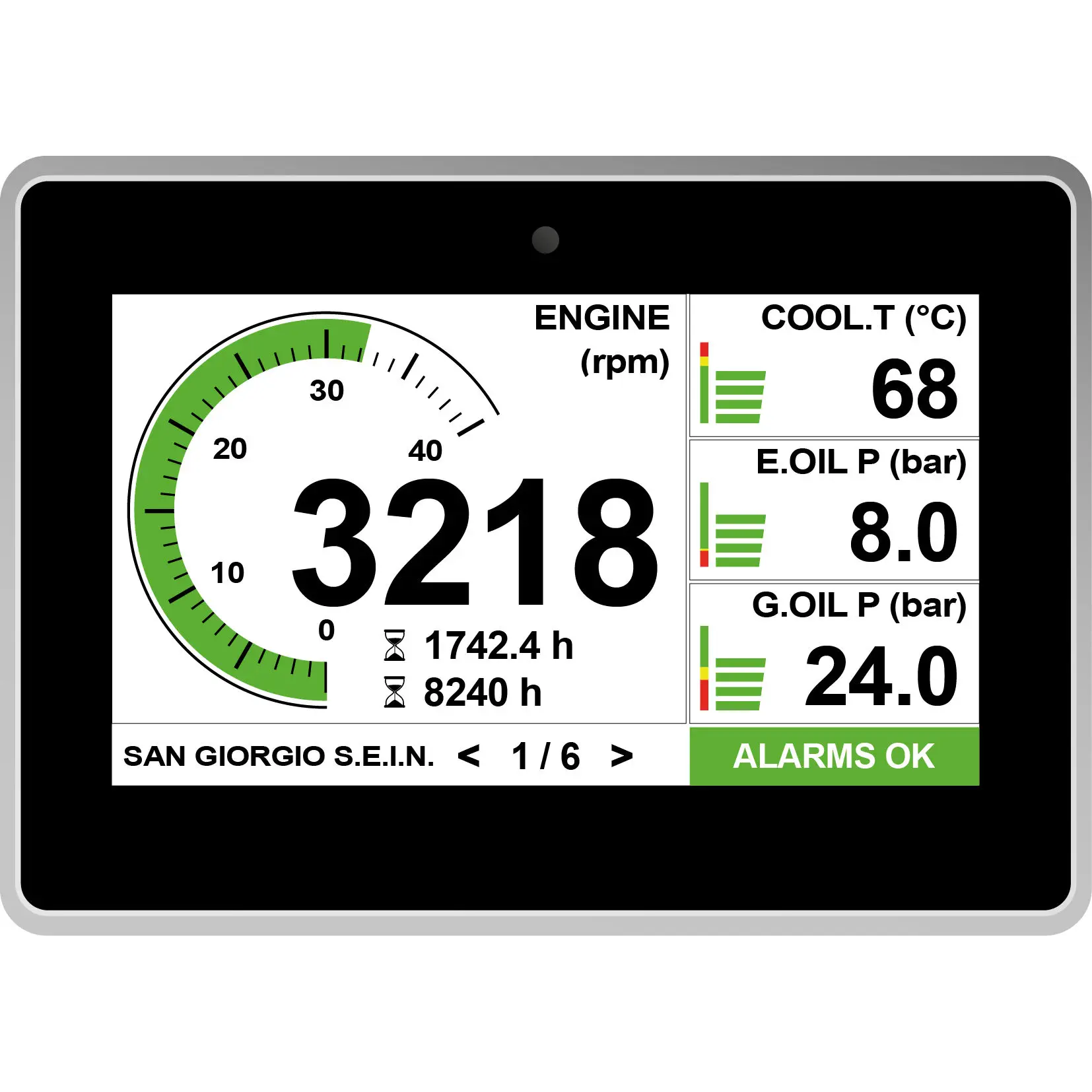

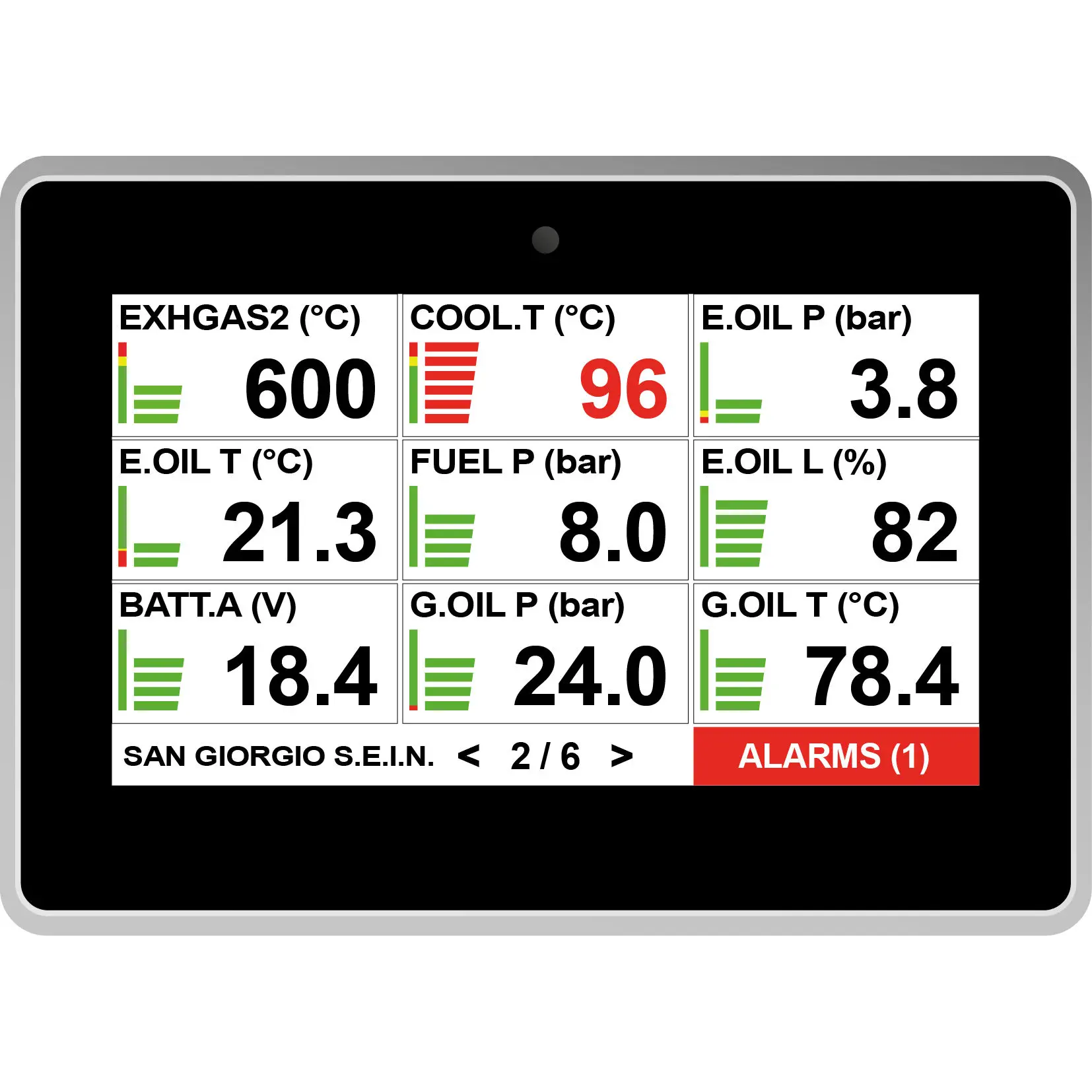

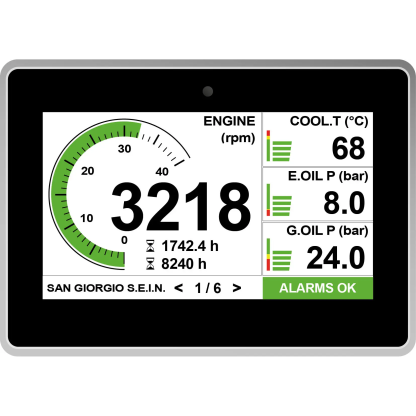

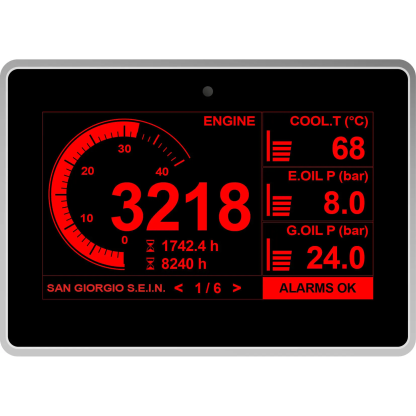

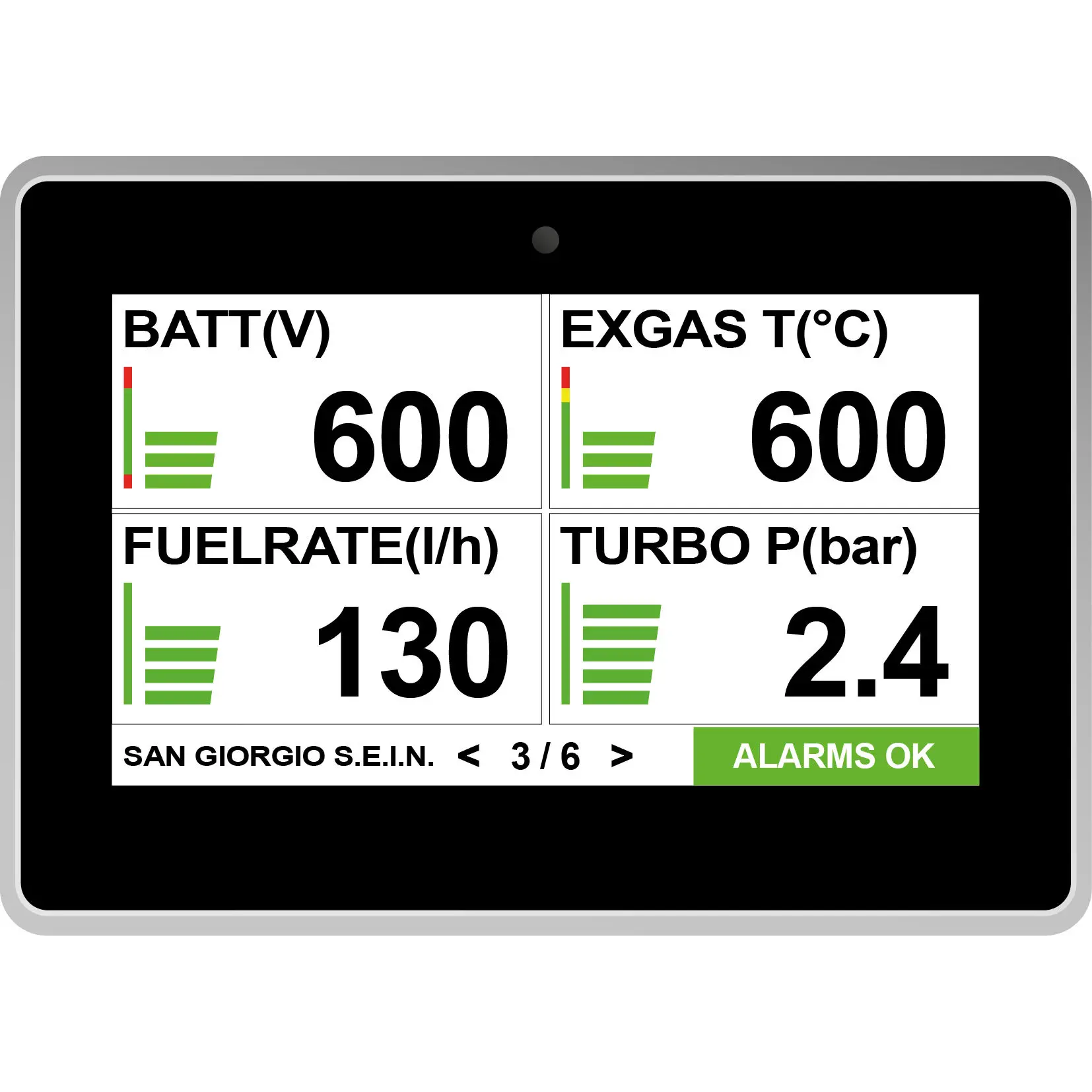

High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 5″ touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems. It can be customized and programmed via USB interface.
Dimensions: 144 x 100 x 145 mm
Mounting hole: 136 x 92 mm
Display: 5″ color TFT LCD, high brightness 800cd
Resolution: 480 x 272 pixel
Touch screen: Capacitive
Power supply: 9-36 V
Connectors: 2 x Deutsch 12 pin
Protection grade: IP67
Operating temperature: -20 +70 °C
