Description

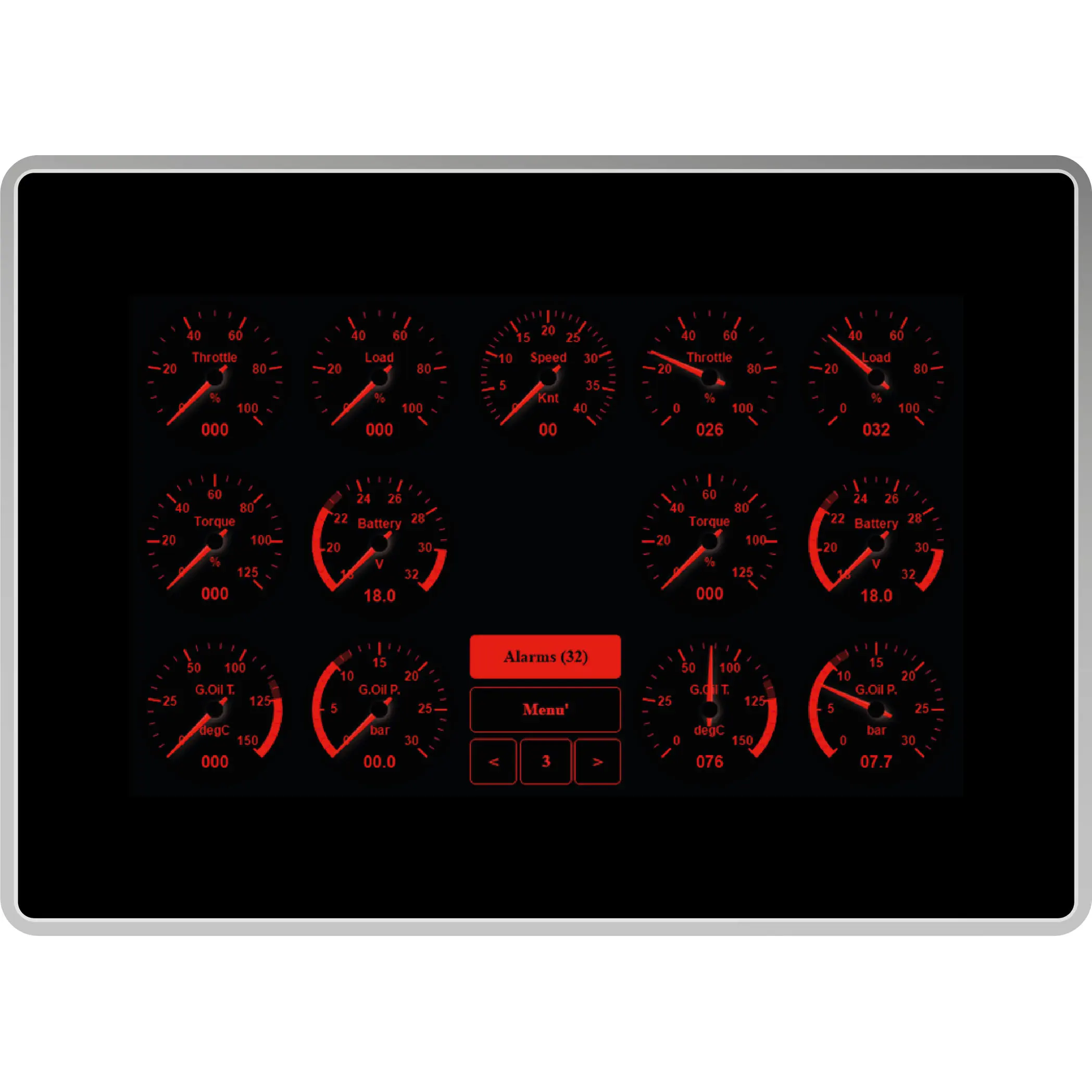

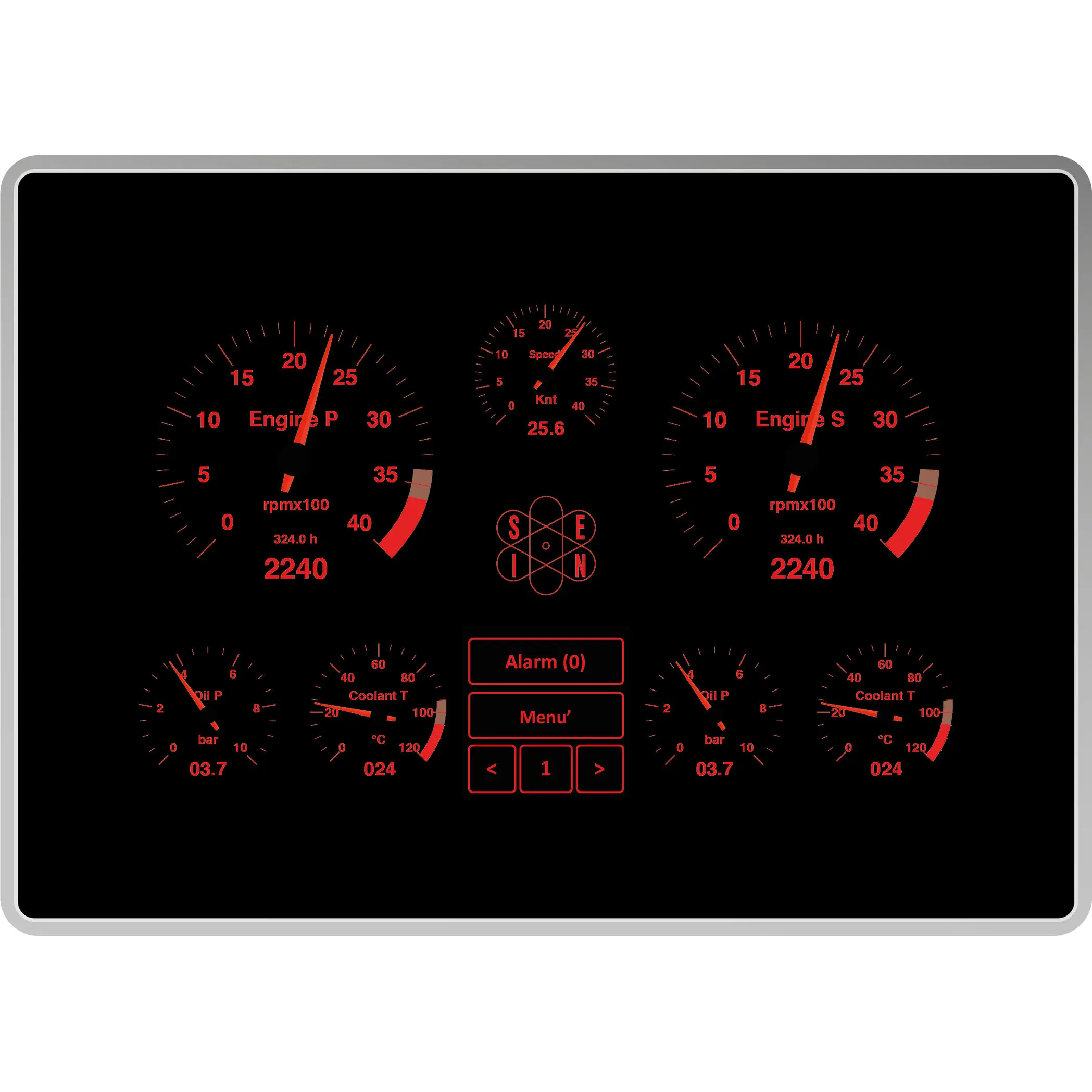

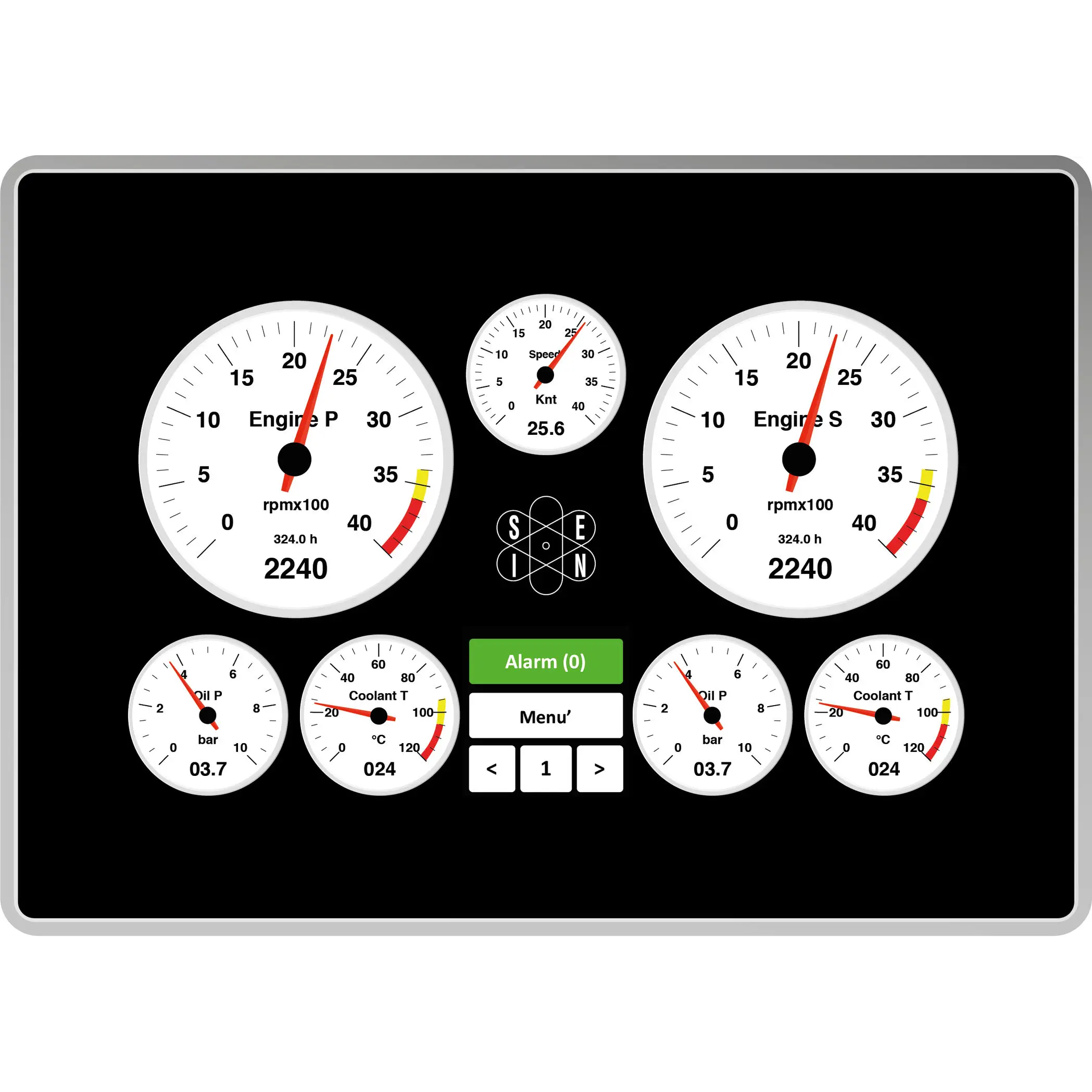

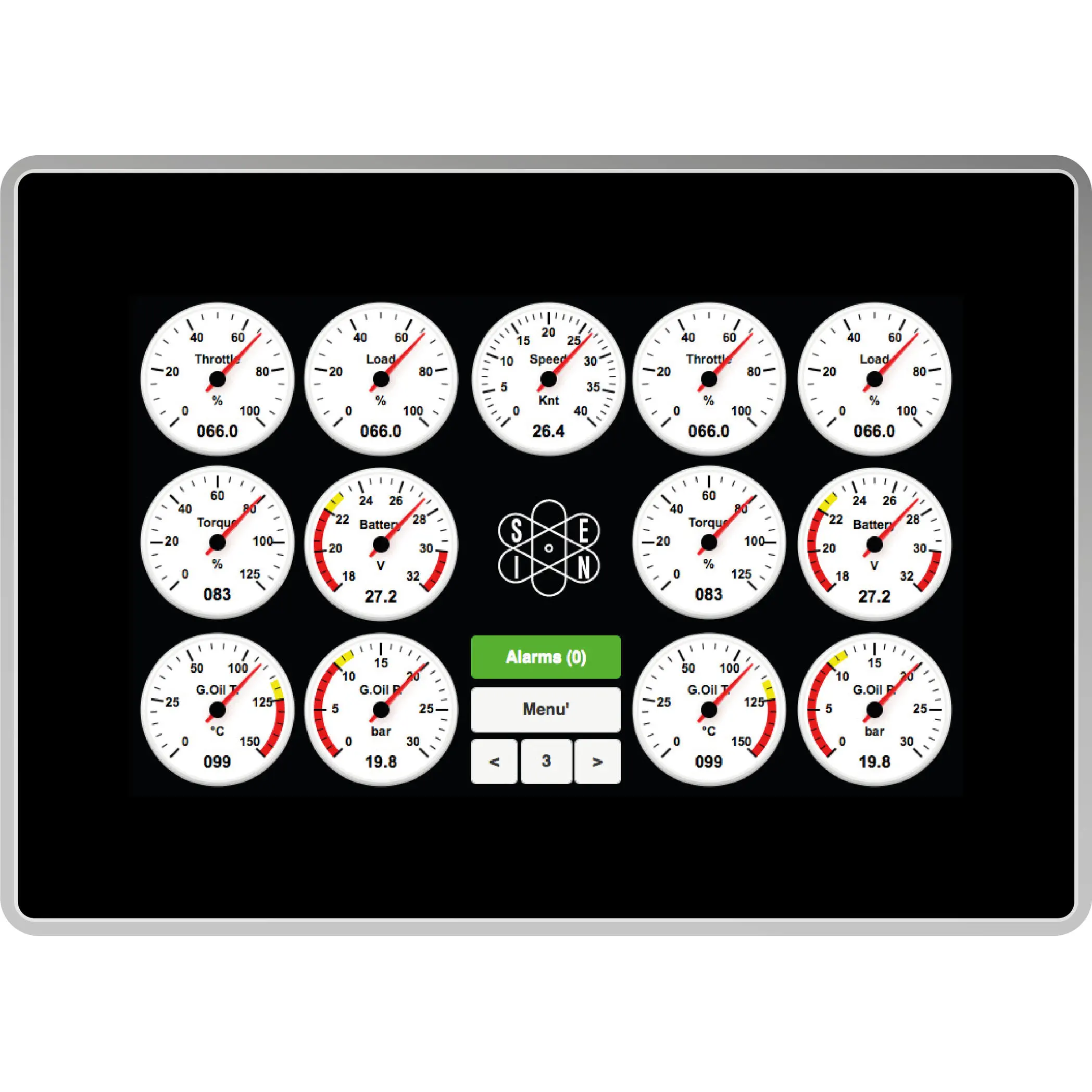

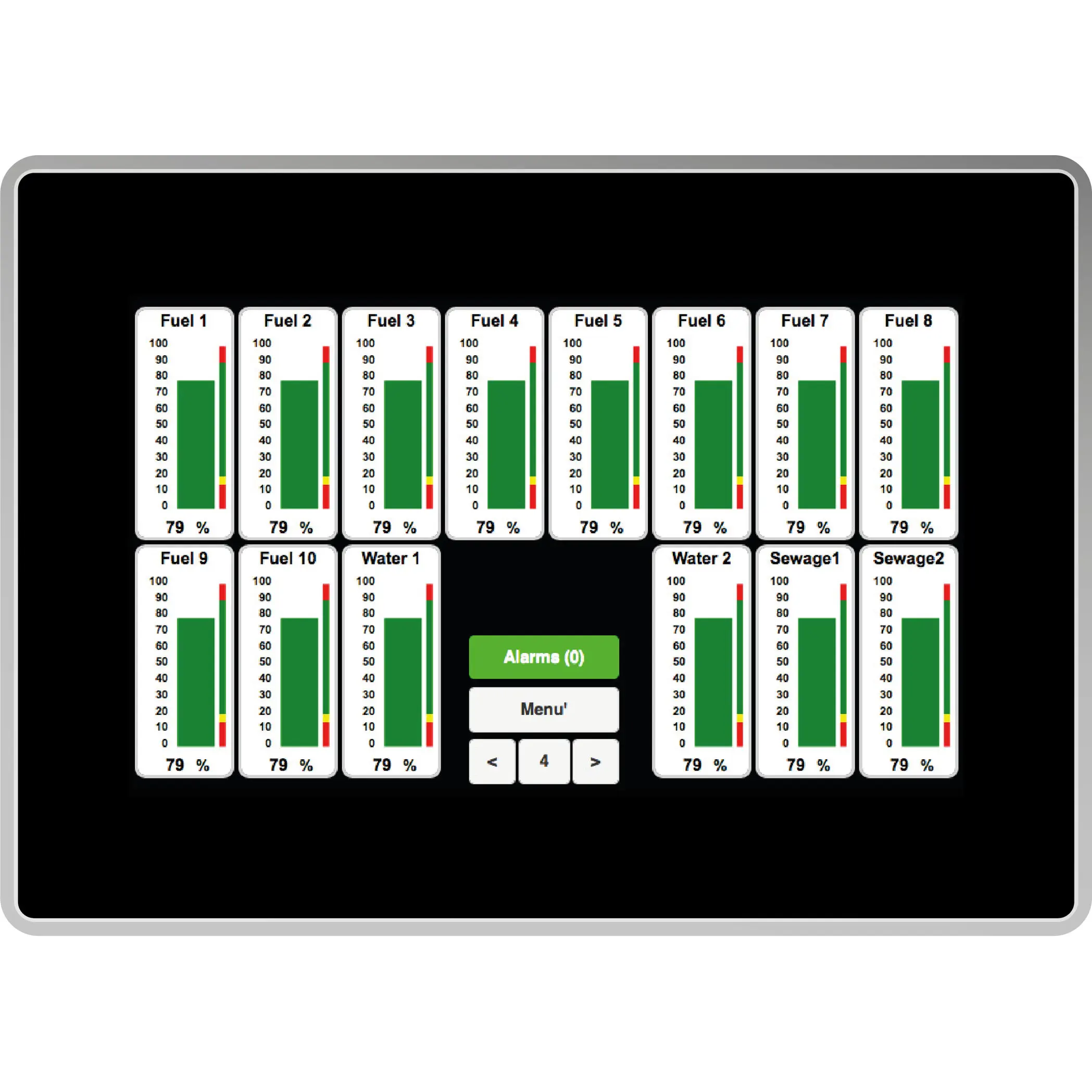

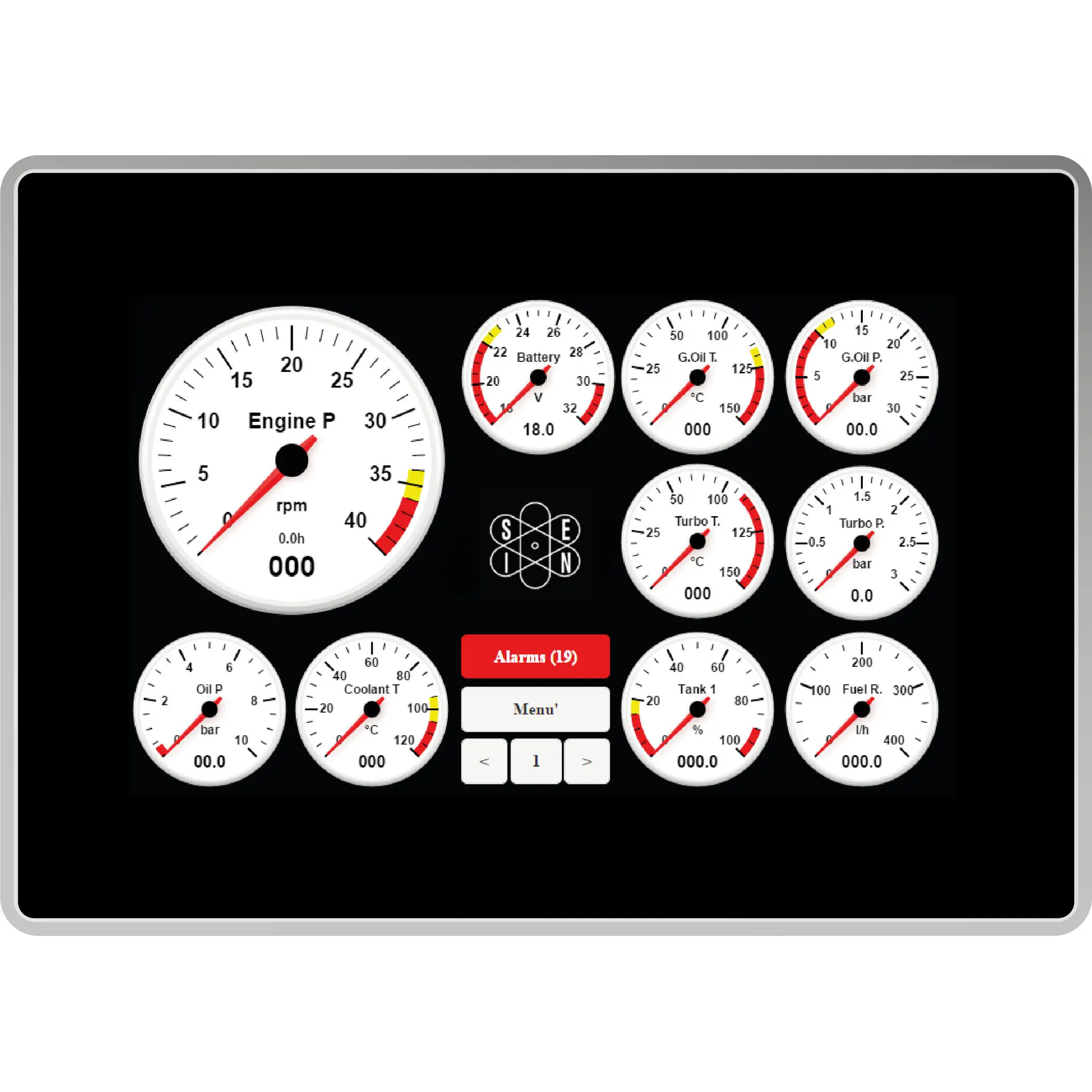

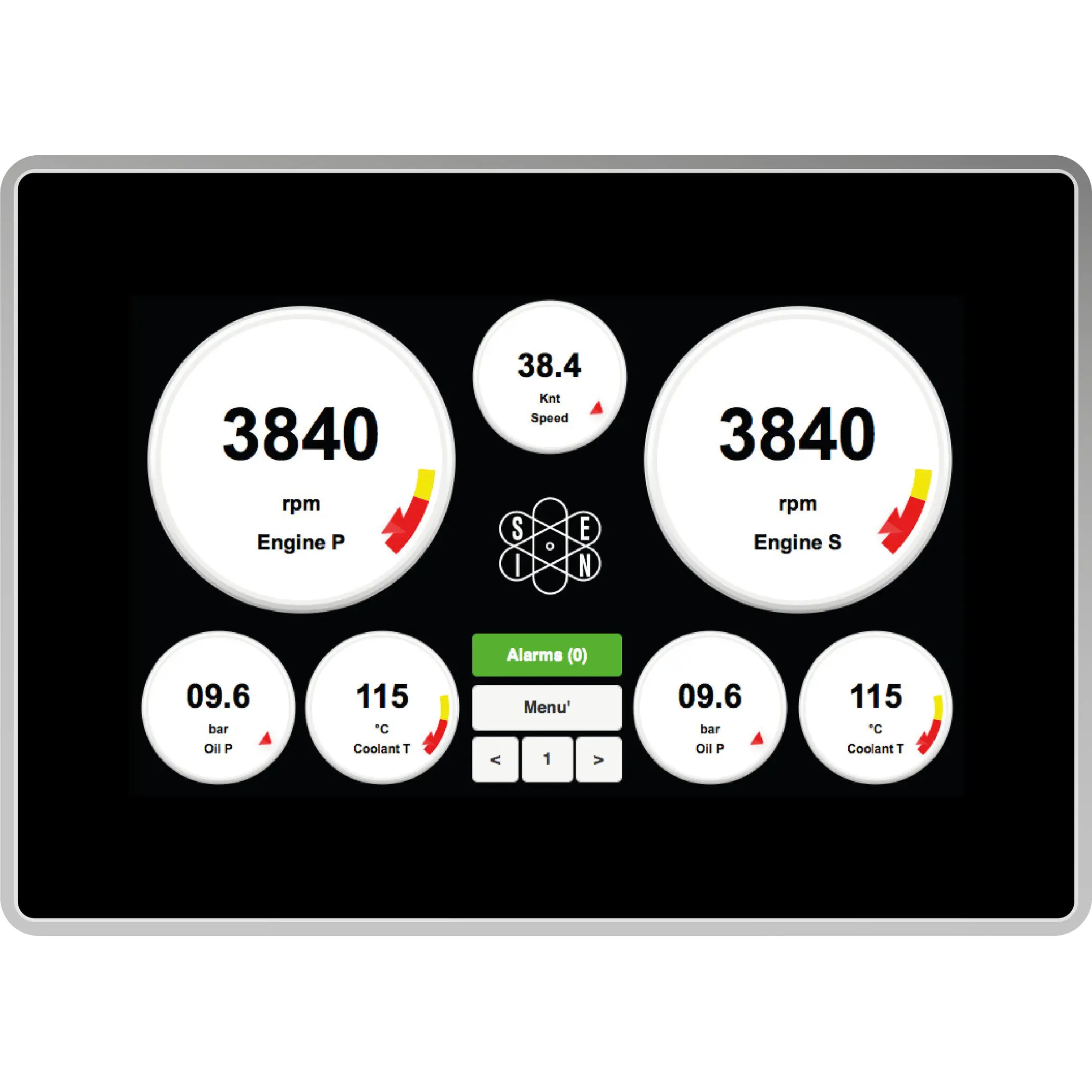

High performance monitoring and control system capable of supporting two engines on one panel, specifically designed for naval, professional, and pleasure boats applications. It offers a new 7″ touch screen display optimized for sun visibility, a new design and many possibilities of connection to on-board apparatus and portable devices. The innovative “Flexible Hardware” electronics provides direct acquisition of many measurement sensors without additional signal converters. Three CAN Bus J1939 ports and one NMEA2000 compatible output make it the perfect device to use with multifunction navigation systems. Datalogger functionality with internal SD card. It can be customized and programmed via LAN, WiFi and USB interface.
Dimensions: 200 x 143 x 67 mm
Mounting hole: 183 x 135 mm
Display: 7″ color TFT LCD, high brightness 1000cd
Resolution: 800 x 480 pixel
Touch screen: Capacitive
Power supply: 9-36 V
Protection grade: IP67
Operating temperature: -20 +70 °C
Type approval: R.I.N.A.
